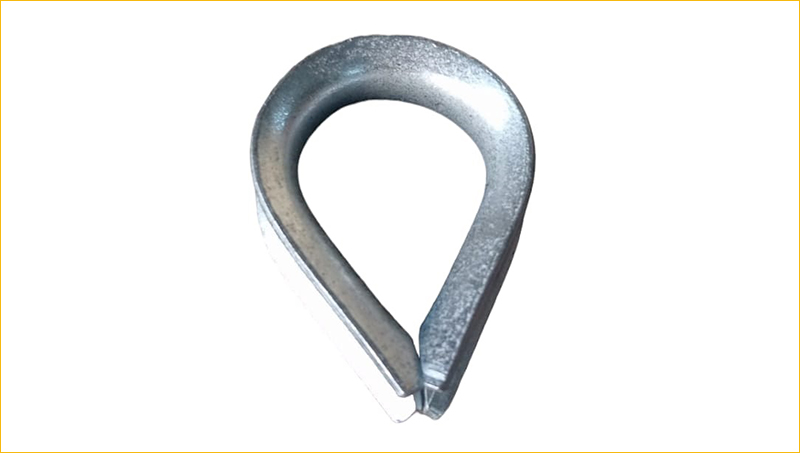

Product Details:

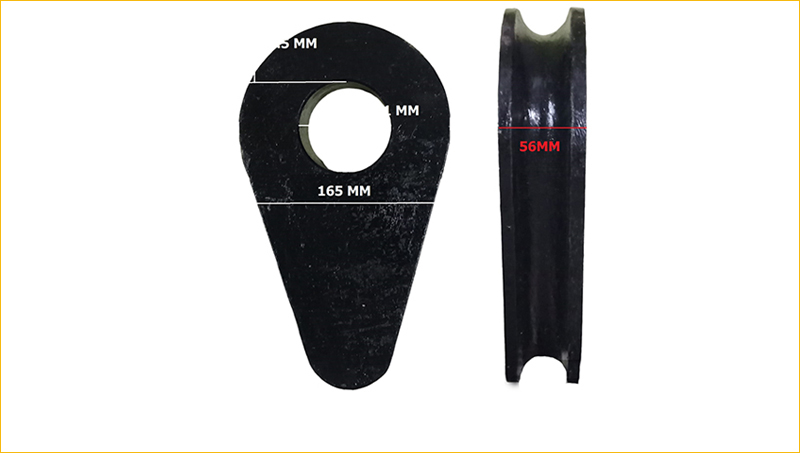

For wire ropes of intermediate sizes, the next larger size of thimble shall be used. Dimension M is the standard pin hole and the largest pin-hole for each thimble.
Specification:
| Nominal size of rope | A | C | D | F | G | K | R1 | R |
| (1) | (2) | (3) | (4) | (5) | (6) | (7) | (8) | (9) |
| 8 | 33 | 11 | 46 | 9 | 4 | 3.5 | 25 | 12 |
| 10 | 44 | 15 | 56 | 11 | 6 | 5.5 | 32 | 16 |
| 12 | 60 | 20 | 82 | 13 | 8 | 7.5 | 44 | 22 |
| 14 | 60 | 21 | 82 | 15 | 8 | 7.5 | 44 | 22 |
| 16 | 70 | 23 | 94 | 17 | 10 | 29.5 | 50 | 25 |
| 18 | 80 | 26 | 104 | 19 | 12 | 11 | 56 | 28 |
| 20 | 88 | 28 | 116 | 21 | 12 | 11 | 64 | 32 |
| 22 | 100 | 30 | 125 | 24 | 14 | 13 | 72 | 34 |
| 24 | 104 | 33 | 140 | 26 | 14 | 13 | 76 | 38 |
| 25 | 114 | 36 | 150 | 27 | 16 | 14.5 | 82 | 42 |
